771-8992/106-101 | WAGO

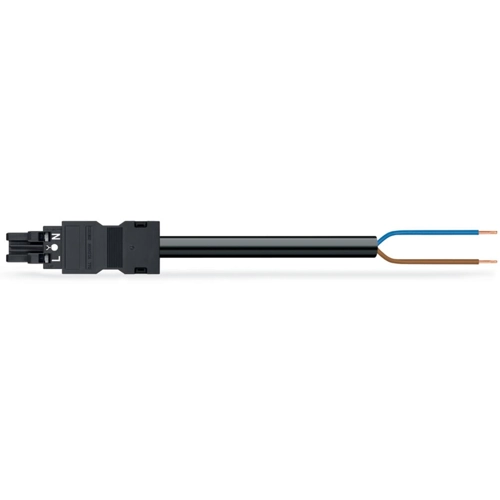

Connection cable, 1 m, socket, 2 pole straight to open end, 1.5 mm², 771-8992/106-101
Unit Price (€ / pc.)
5.95 € *
Standard delivery time from the manufacturer is: 3 Weeks
Connecting line, 771-8992/106-101, WAGO
The WINSTA MIDI Connecting line 2-pole. This pluggable installation connector is used when specifications repeat or is distributed on a defined grid, for example for installing grid lighting or flush-mount lighting. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.
The This WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Effective protection against mismating
- For automation controllers
- With A coding for use in a large number of general mains applications
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection line | |
| Coding | A | |
| Cable cross-section | 1.5 mm² | |
| Connection 1 design | straight | |
| Connection (2) | open end | |
| Cable length | 1 m | |
| Connection (1) | socket, 2 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
