771-8992/007-202 | WAGO
Connection cable, 2 m, socket, 2 pole straight to plug, 2 pole straight, 2.5 mm², 771-8992/007-202
Unit Price (€ / pc.)
9.7937 € *
Standard delivery time from the manufacturer is: 3 Weeks
Connecting line, 771-8992/007-202, WAGO
The WINSTA MIDI Connecting line A coding allows installation of solid and fine-stranded conductors. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector is used for electrical currents up to 20 A. Thus the product is also suitable for high power loads.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Protection against mismating eliminates errors
- Suitable for any application
- Fast, secure installation

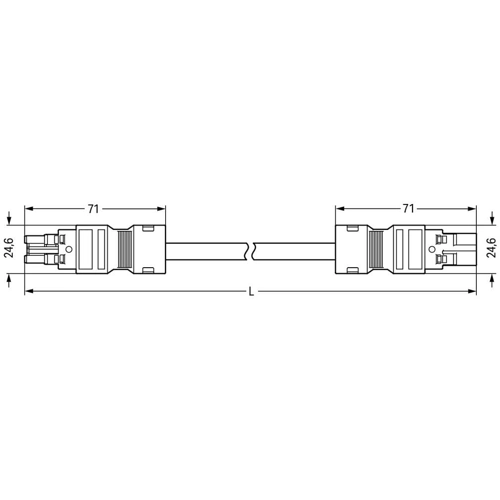

Technical specifications
| Cable length | 2 m | |
| Coding | A | |
| Connection 2 design | straight | |
| Cable cross-section | 2.5 mm² | |
| Connection (2) | plug, 2 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection (1) | socket, 2 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
