771-8985/216-703 | WAGO

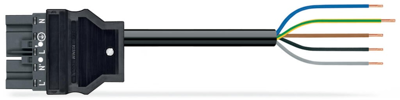

Connection cable, 7 m, plug, 5 pole straight to open end, 1.5 mm², 771-8985/216-703
Unit Price (€ / pc.)
36.9019 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-8985/216-703, WAGO
WINSTA MIDI Connecting line for power and signal transmission. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Due to the built-in test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and expense.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Protection against mismating eliminates errors
- Simple circuits
- For providing power to power supply units
- Ready to install and use immediately
- Fast, secure installation

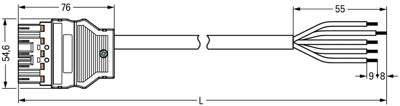

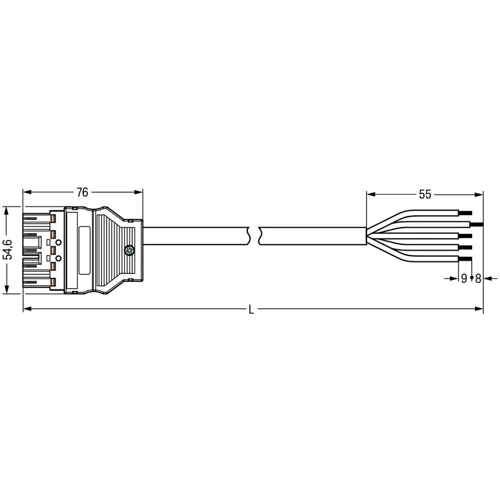

Technical specifications
| Cable length | 7 m | |
| Coding | L | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
