771-8985/216-304 | WAGO

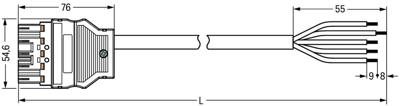

Connection cable, 3 m, plug, 5 pole straight to open end, 1.5 mm², 771-8985/216-304
Unit Price (€ / pc.)
23.2764 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-8985/216-304, WAGO
The WINSTA MIDI Connecting line allows flexible, error-free installation in numerous applications. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. The Connecting line is free of halogen. This eliminates the addition of environmental pollutants during production.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Protection against mismating eliminates errors
- For automation controllers
- Fast, secure installation
Technical specifications
| Cable length | 3 m | |
| Coding | L | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
