771-8985/216-303 | WAGO

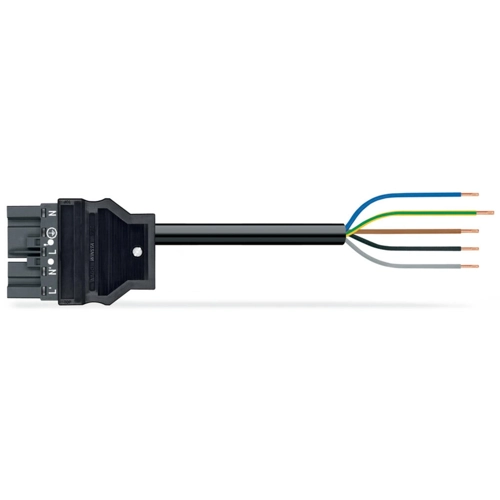

Connection cable, 3 m, plug, 5 pole straight to open end, 1.5 mm², 771-8985/216-303
Unit Price (€ / pc.)
23.2764 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connecting line, 771-8985/216-303, WAGO
The WINSTA MIDI Connecting line supports rapid, correct installation. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Thanks to the included test slot, connections can be checked even when they are plugged in. This saves time, labor, and money.
WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- For supplying power to power supply units
- Fast, secure installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Coding | L | |
| Cable length | 3 m | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
