771-8985/207-503 | WAGO

Connection cable, 5 m, plug, 5 pole straight to open end, 2.5 mm², 771-8985/207-503

Order No.: 45P4373
EAN: 4050821123187
MPN:
771-8985/207-503
Series: WINSTA MIDI

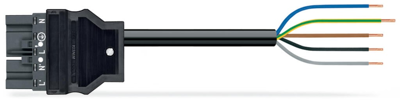

771-8985/207-503 WAGO Pre-assembled Connector Systems Image 1

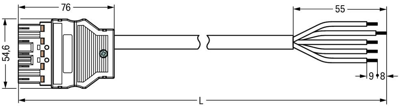

771-8985/207-503 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
27.6794 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
27.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
27.6794 €

Connecting line, 771-8985/207-503, WAGO

The WINSTA MIDI Connecting line L coding allows installation of solid and fine-stranded conductors. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This product has a current rating of 20 A - therefore it is also suitable for high power loads.

WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures error-free installation of cables and components, quickly and reliably.

Features

  • Protection against mismating eliminates errors
  • For automation controllers
  • For supplying power to power supply units
  • Rapid, structured electrical installation
Technical specifications
Cable length 5 m
Coding L
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 5 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
