771-8985/206-104 | WAGO

Connection cable, 1 m, plug, 5 pole straight to open end, 1.5 mm², 771-8985/206-104

Order No.: 45P4350
EAN: 4050821117650
MPN:
771-8985/206-104
Series: WINSTA MIDI

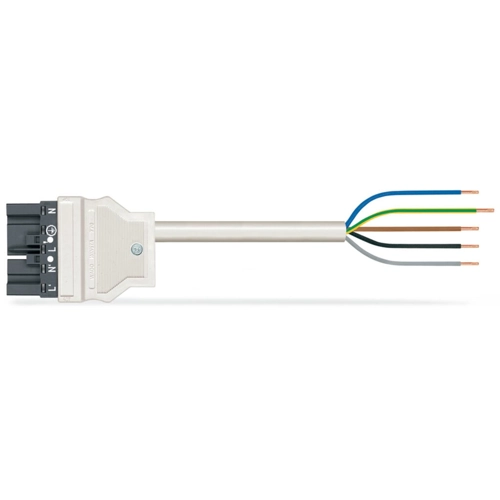

771-8985/206-104 WAGO Pre-assembled Connector Systems Image 1
771-8985/206-104 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
16.0531 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
16.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.0531 €

Connecting line, 771-8985/206-104, WAGO

The WINSTA MIDI Connecting line rated current 16 A supports rapid, correct installation. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it guarantees time-saving, error-free installation and offers flexibility and customization for meeting various installation requirements.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Now you can also cut installation expenses without compromising quality and safety: with protection against mismating reduces the need for servicing and prevents unnecessary downtime.

Features

  • Protection against mismating eliminates errors
  • For supplying power to power supply units
  • Ready for immediate use
  • Rapid, structured electrical installation
Technical specifications
Cable length 1 m
Coding L
Cable cross-section 1.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 5 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
