771-8985/116-204 | WAGO

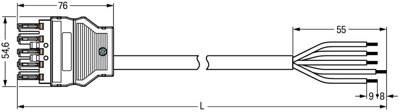

Connection cable, 2 m, socket, 5 pole straight to open end, 1.5 mm², 771-8985/116-204
Connecting line, 771-8985/116-204, WAGO
The WINSTA MIDI Connecting line L coding allows installation of fine-stranded and solid conductors. This pluggable installation connector with spring pressure connection technology work completely without screw connections. They allow flexible, error-free installation in numerous applications. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It ensures error-free installation of cables and components, quickly and reliably. Now you can also cut installation costs without compromising quality and safety: with protection against mismating eliminates the need for servicing and prevents unnecessary downtime.
Features
- Protection against mismating eliminates errors
- With L coding for supplying power in automation
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Coding | L | |
| Cable length | 2 m | |
| Connection 1 design | straight | |
| Connection (1) | socket, 5 pole |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
