771-8985/017-304 | WAGO

Connection cable, 3 m, socket, 5 pole straight to plug, 5 pole straight, 2.5 mm², 771-8985/017-304

Order No.: 45P6216
EAN: 4055143497442
MPN:
771-8985/017-304
Series: WINSTA MIDI

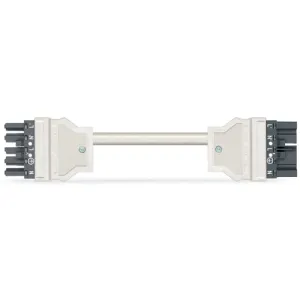

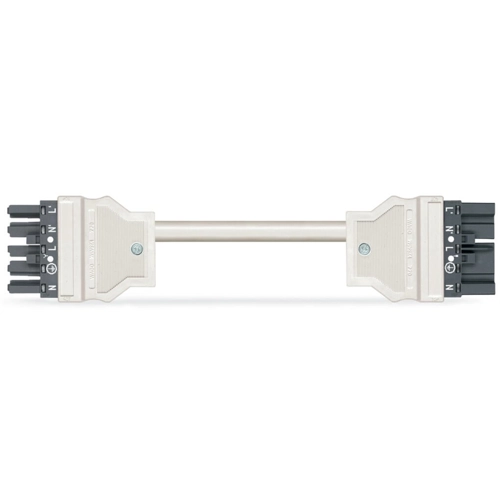

771-8985/017-304 WAGO Pre-assembled Connector Systems Image 1
771-8985/017-304 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
36.9852 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
36.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.9852 €

Connecting line, 771-8985/017-304, WAGO

The WINSTA MIDI Connecting line is useful when criteria repeat or are planned on a specified grid, for example for installing grid lighting or flush-mount lighting. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector can be employed for a current load of up to 20 A. As a result, it can also be used for high power loads.

The WINSTA Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus faster, even more reliable, and error-free. Use of this pre-assembled system reduces assembly times and errors during installation at the construction site. Now you can also cut installation costs without compromising safety and quality: with strain relief hosting reduces the need for servicing and prevents unnecessary downtime.

Features

  • Protection against mismating eliminates errors
  • Simple circuits
  • With L coding for supplying power in automation
  • Ready for immediate use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Cable length 3 m
Coding L
Connection 2 design straight
Cable cross-section 2.5 mm²
Connection (2) plug, 5 pole
Version connecting line
Connection 1 design straight
Connection (1) socket, 5 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
