771-8982/216-104 | WAGO

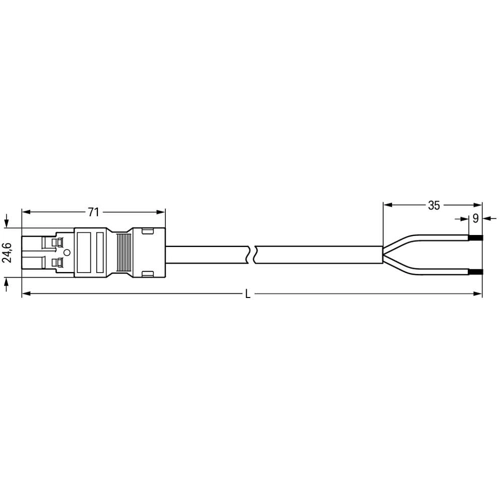

Connection cable, 1 m, plug, 2 pole straight to open end, 1.5 mm², 771-8982/216-104
Connecting line, 771-8982/216-104, WAGO
The WINSTA MIDI Connecting line L coding allows installation of solid and fine-stranded conductors. This pluggable installation connector can be used when requirements repeat or is planned on a specific grid, for example for installing grid lighting or flush-mount lighting. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
The Connecting line is provided with a plug and a free end. WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With L coding for supplying power in automation
- Exact dimensions
- Quick replacement of defective units during ongoing operation
| Filter | Property | Value |
|---|---|---|
| Connection (1) | plug, 2 pole | |
| Connection 1 design | straight | |
| Cable length | 1 m | |
| Coding | L | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Connection (2) | open end |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
