771-8982/006-301 | WAGO

Connection cable, 3 m, socket, 2 pole straight to plug, 2 pole straight, 1.5 mm², 771-8982/006-301

Order No.: 45P5531
EAN: 4050821104919
MPN:
771-8982/006-301
Series: WINSTA MIDI

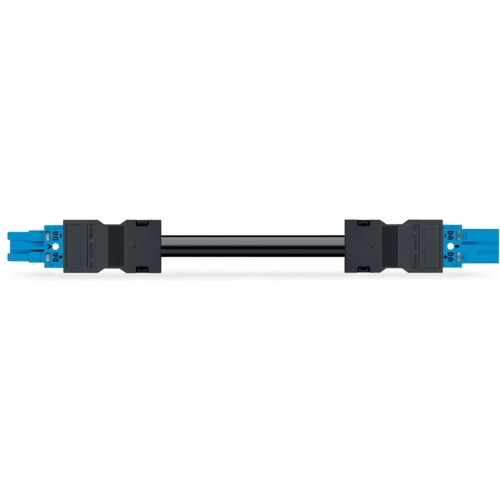

771-8982/006-301 WAGO Pre-assembled Connector Systems Image 1
771-8982/006-301 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
9.7937 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.7937 €

Connecting line, 771-8982/006-301, WAGO

The WINSTA MIDI Connecting line allows installation of fine-stranded and solid conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This product meets all the relevant fire protection requirements of fire class E; therefore it can be used in domains where fire safety is relevant.

The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and consequently more efficient, even more reliable, and error-free. Use of this pre-assembled system reduces assembly times and installation errors at the construction site.

Features

  • Pluggable installation connector with protection against mismating
  • For automation controllers
  • With I coding for controlling light (DALI standard)
  • Rapid, structured electrical installation
Technical specifications
Cable length 3 m
Coding I
Connection 2 design straight
Cable cross-section 1.5 mm²
Connection (2) plug, 2 pole
Version connecting line
Connection 1 design straight
Connection (1) socket, 2 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
