771-8982/006-101 | WAGO

Connection cable, 1 m, socket, 2 pole straight to plug, 2 pole straight, 1.5 mm², 771-8982/006-101

Order No.: 45P5527
EAN: 4055143270977
MPN:
771-8982/006-101
Series: WINSTA MIDI

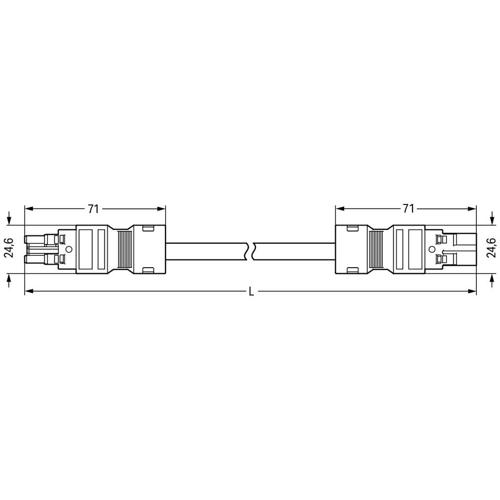

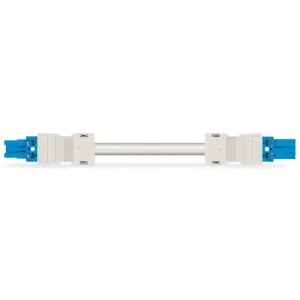

771-8982/006-101 WAGO Pre-assembled Connector Systems Image 1
771-8982/006-101 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.7588 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.7588 €

Connecting line, 771-8982/006-101, WAGO

The WINSTA MIDI Connecting line provides the foundation for assembly of solid and fine-stranded conductors. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it ensures time-saving, error-free installation and offers flexibility and customization for meeting various installation requirements.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.

Features

  • Pluggable installation connector with protection against mismating
  • For automation controllers
  • With I coding for use in building automation (lighting control)
  • Flexible installation to save space
  • Fast, secure installation
Technical specifications
Cable length 1 m
Coding I
Connection 2 design straight
Cable cross-section 1.5 mm²
Connection (2) plug, 2 pole
Version connecting line
Connection 1 design straight
Connection (1) socket, 2 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
