771-6993/206-201 | WAGO

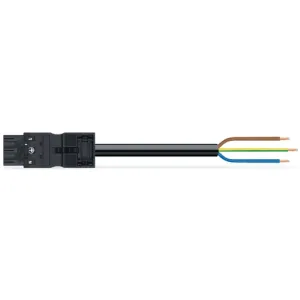

Connection cable, 2 m, plug, 3 pole straight to open end, 1.5 mm², 771-6993/206-201
Unit Price (€ / pc.)
7.9968 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connecting line, 771-6993/206-201, WAGO
The WINSTA MIDI Connecting line with protection type IP2XD allows installation of solid and fine-stranded conductors. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to make connections according to an enormous variety of requirements in no time flat. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. General mains applications for almost any domain of use can be implemented with WINSTA MIDI pluggable installation connector with A coding.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Protection against mismating eliminates errors
- Simple circuits
- With A coding for a large number of applications
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection line | |
| Coding | A | |
| Connection (1) | plug, 3 pole | |
| Cable cross-section | 1.5 mm² | |
| Cable length | 2 m | |
| Connection (2) | open end | |
| Connection 1 design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
