771-9993/306-302 | WAGO

Device connection cable, Europe, german schuko-style plug, angled on socket, 3 pole, straight, H05VV-F3G1.5 mm², white, 3 m, 771-9993/306-302

Order No.: 45P5124
EAN: 4044918588003
MPN:
771-9993/306-302
Series: WINSTA MIDI

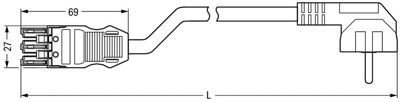

771-9993/306-302 WAGO Power Cords Image 1

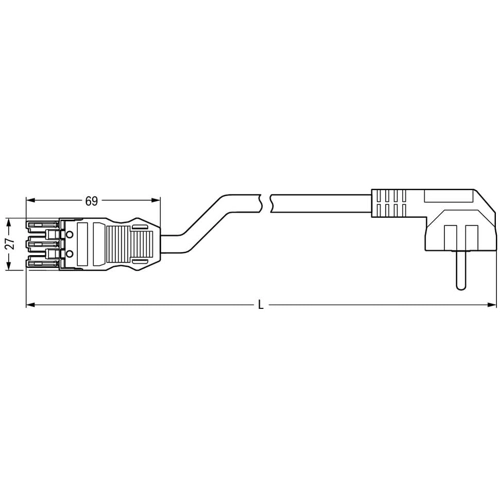

771-9993/306-302 WAGO Power Cords Image 2
Image may differ
Unit Price (€ / pc.)
10.0674 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.0674 €

Device connection line, 771-9993/306-302, WAGO

The WINSTA MIDI cable assembly 3-pole is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Thanks to the built-in test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money.

The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, even more reliable, and error-free. Use of this pre-assembled system reduces assembly times and installation errors at the construction site.

Features

  • Protection against mismating eliminates errors
  • With A coding for a great number of applications
  • Flexible installation to save space
  • Convenient installation and commissioning
Technical specifications
Filter Property Value
Connection (2) socket, 3 pole, straight
Colour white
Cable type H05VV-F3G1.5 mm²
Connection (1) german schuko-style plug, angled
Country code Europe
Standard connection 1 CEE (7) VII
Standard connection 2 IEC 61535
Version power cord
Rated current 16 A
Cable cross-section 1.5 mm²
Cable length 3 m
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
