855-2701/064-001 | WAGO
Plug-in current transformer, 64 A, (W x H x D) 27 x 46 x 23 mm, 855-2701/064-001
Unit Price (€ / pc.)
51.0629 € *
Standard delivery time from the manufacturer is: 3 Weeks

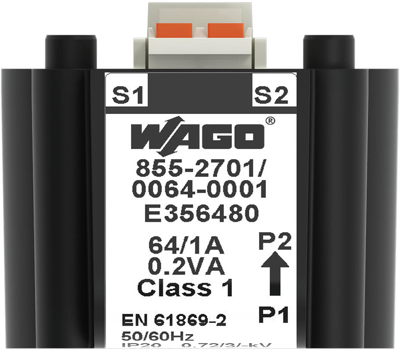

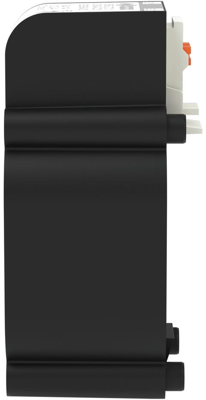

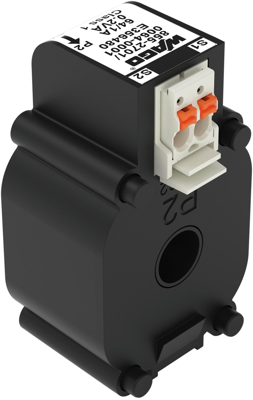

Plug-in current transformer, 855-2701/064-001, WAGO
This plug-in current transformer is inductive, single-conductor current transformer. Due to the measurement principle used, this current transformer is exclusively designed for AC network applications.
Features
- All-new design with picoMAX connection technology
- Ready for space-restricted applications
- Simple assembly permits 17.5 mm phase spacing, allowing perfect adjustment to any circuit breaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 27 mm | |
| Rated current | 64 A | |
| Weight | 44 g | |
| Version | plug-in current transformer | |
| Height | 46 mm | |
| Depth | 23 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | NL |
| Customs tariff number | 85043129 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
