750-8215 | WAGO
Controller PFC200, 2nd Generation, 4 x ETHERNET, CAN, CANopen, USB-A
Unit Price (€ / pc.)
1,110.27 € *
Standard delivery time from the manufacturer is: 5 Weeks

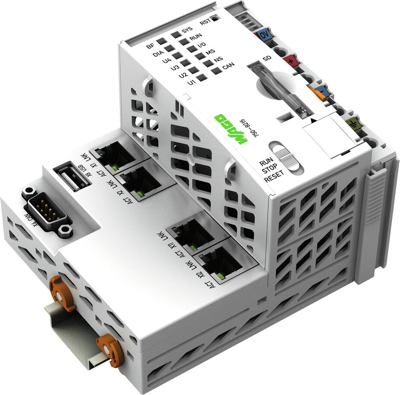

Controller, 750-8215, WAGO
The 750-8215 Controller is a compact PLC for the modular WAGO I/O System. Four ETHERNET interfaces and an integrated switch enable line topology wiring. An integrated Webserver provides user configuration options, while displaying PFC200 status information. Besides the processing industry and building automation, typical applications for the 750-8215 include standard machinery and equipment control (e.g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).
Features
- Programming per IEC 61131-3
- 4 x ETHERNET (configurable), CAN, CANopen, PROFINET I-Device
- Maintenance-free
- Linux operating system with PREEMPT_RT patch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Depth | 71.9 mm | |
| Version | control unit | |
| Height | 100 mm | |
| Width | 112 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85371091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
