750-8214 | WAGO
Controller PFC200, 2nd Generation, 2 x ETHERNET, RS-232/-485, CAN, CANopen
Unit Price (€ / pc.)
1,016.26 € *
Standard delivery time from the manufacturer is: 5 Weeks

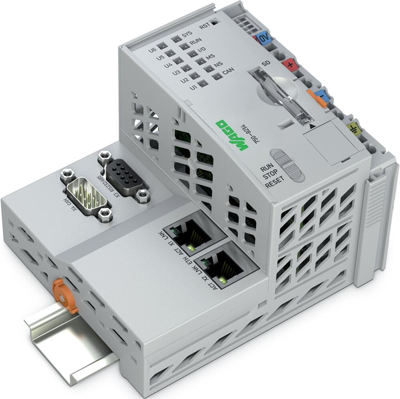

Controller, 750-8214, WAGO
The 750-8214 Controller is a compact PLC for the modular WAGO I/O System. Two ETHERNET interfaces and an integrated switch enable line topology wiring. An integrated Webserver provides user configuration options, while displaying PFC200 status information. Besides the processing industry and building automation, typical applications for the 750-8214 include standard machinery and equipment control (e.g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).
Features
- Programming per IEC 61131-3
- 2 x ETHERNET (configurable), RS-232/-485, CAN, CANopen
- Maintenance-free
- Linux operating system with PREEMPT_RT patch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | control unit | |
| Assembly | DIN rail | |
| Width | 112 mm | |
| Height | 100 mm | |
| Depth | 71.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
