806-110 | WAGO

PCB terminal, 10 pole, pitch 5 mm, AWG 24-16, 10 A, push-in cage clamp, gray, 806-110

Order No.: 43P2482
EAN: 4045454077006
MPN:
806-110
Series: 806

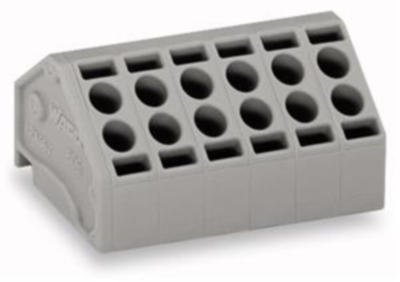

806-110 WAGO PCB Terminal Blocks Image 1

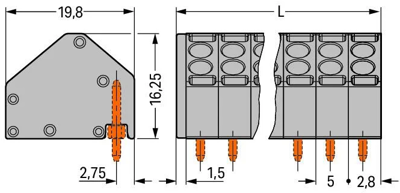

806-110 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.1765 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.1765 €

PCB terminal, 806-110, WAGO

2-conductor female connector, 1.5 mm², pin spacing: 5 mm, 10-pole, 1.50 mm², gray.

Features

  • 2-conductor female connector with push-in cage clamp and screwdriver actuation
  • Push-in termination of solid and ferruled conductors
  • Double entries for power supply and potential distribution
  • Quick and easy PCB replacement, without disrupting looped-through potentials
Technical specifications
Colour gray
Depth 19.8 mm
AWG cross-section AWG 24-16
Rated current 10 A
Grid 5 mm
Width 51.5 mm
Height 16.25 mm
Cable cross-section 0.2-1.5 mm²
Pin number 10 pole
Connection push-in cage clamp
Rated voltage 320 V
Logistics
Country of origin PL
Customs tariff number 85365005
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
