805-304/200-604 | WAGO

PCB terminal, 4 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, black, 805-304/200-604

Order No.: 45P1797
EAN: 4050821403760
MPN:
805-304/200-604
Series: 805

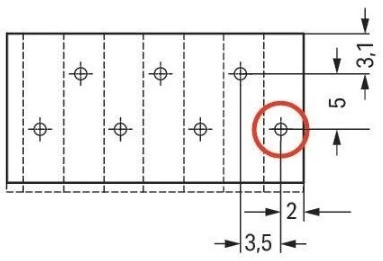

805-304/200-604 WAGO PCB Terminal Blocks Image 1

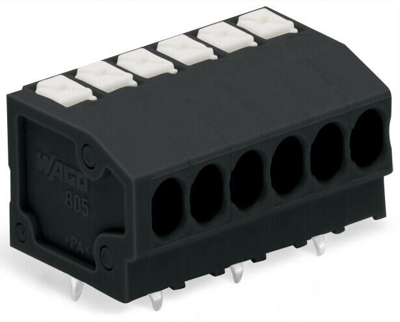

805-304/200-604 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.1305 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1305 €
10 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale

THR PCB terminal block, 805-304/200-604, Wago

THR terminal strip with actuating pushers 1 solder pin/pin offset 4-pole grid dimension 3.5 mm / 0.138 in with actuating pushers without test hole black

Technical specifications
Colour black
Depth 13.6 mm
AWG cross-section AWG 24-16
Rated current 17.5 A
Grid 3.5 mm
Width 15.5 mm
Height 13.7 mm
Cable cross-section 0.2-1.5 mm²
Pin number 4 pole
Connection push-in cage clamp
Rated voltage 320 V
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
