805-304/200-604/997-405 | WAGO
PCB terminal, 4 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, black, 805-304/200-604/997-405
Unit Price (€ / pc.)
1.3328 € *
Standard delivery time from the manufacturer is: 3 Weeks

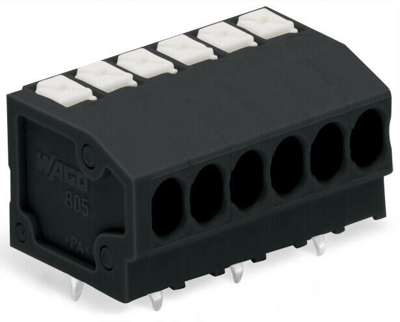

THR PCB terminal block, 805-304/200-604/997-405, Wago
THR terminal strip with actuating pushbuttons in the strap 1 solder pin/pole offset 4-pole grid dimension 3.5 mm black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Depth | 13.6 mm | |
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-16 | |
| Rated voltage | 320 V | |
| Height | 13.7 mm | |
| Assembly | THR | |
| Width | 12.7 mm | |
| Pin number | 4 pole | |
| Colour | black | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated current | 17.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
