805-302/200-604/997-404 | WAGO
PCB terminal, 2 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, black, 805-302/200-604/997-404
Unit Price (€ / pc.)
1.0710 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9639 €
100 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale

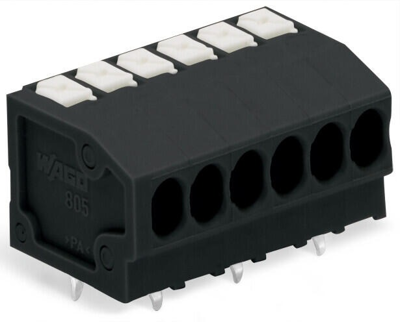

THR PCB terminal block, 805-302/200-604/997-404, Wago
THR terminal strip with actuation pushers in the belt 1 solder pin/pole offset 2-pole Spacing 3.5 mm black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| Rated voltage | 320 V | |
| Grid | 3.5 mm | |
| Depth | 13.6 mm | |
| AWG cross-section | AWG 24-16 | |
| Cable cross-section | 0.2-1.5 mm² | |
| Pin number | 2 pole | |
| Height | 13.7 mm | |
| Assembly | THR | |
| Connection | push-in cage clamp | |
| Colour | black | |
| Width | 12.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
