804-309/000-008 | WAGO
PCB terminal, 9 pole, pitch 7.5 mm, AWG 20-12, 24 A, cage clamp, gray, 804-309/000-008
Unit Price (€ / pc.)
3.7128 € *
Standard delivery time from the manufacturer is: 4 Weeks

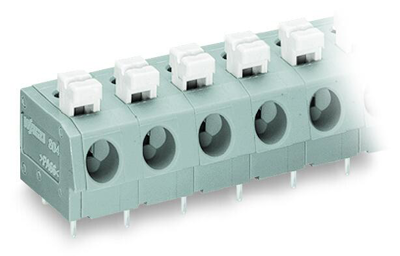

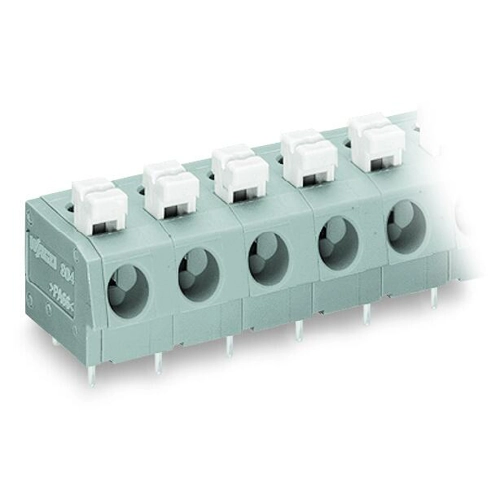

PCB terminal block, 804-309/000-008, WAGO
PCB terminal block, push-button, 2.5 mm², Pin spacing 7.5 mm, 9-pole, Push-in 2.5 mm², dark gray.
Features
- PCB terminal strips with push-buttons and Push-in CAGE CLAMP connection
- Push-in termination of solid and ferruled, fine-stranded conductors
- A large conductor entry accommodates conductors with a cross-section up to 12 AWG with an insulation diameter up to 4.2 mm
- Terminal strips with spacers to increase pin spacing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 9 pole | |
| Grid | 7.5 mm | |
| Cable cross-section | 0.25-2.5 mm² | |
| AWG cross-section | AWG 20-12 | |
| Rated current | 24 A | |
| Rated voltage | 320 V | |
| Width | 66.5 mm | |
| Height | 18.1 mm | |
| Depth | 15 mm | |
| Connection | cage clamp | |
| Assembly | THT | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
