PCB terminal, 4 pole, pitch 5 mm, AWG 20-12, 24 A, push-in cage clamp, black, 804-104/000-004
Unit Price (€ / pc.)
1.4161 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 804-104/000-004, WAGO
PCB terminal block, push-button, 2.5 mm², pin spacing: 5 mm, 4-pole, push-in CAGE CLAMP, 2.50 mm², black.
Features
- PCB terminal strips with push-buttons and Push-in CAGE CLAMP connection
- Push-in termination of solid and ferruled, fine-stranded conductors
- Terminal strips with spacers to increase pin spacing:

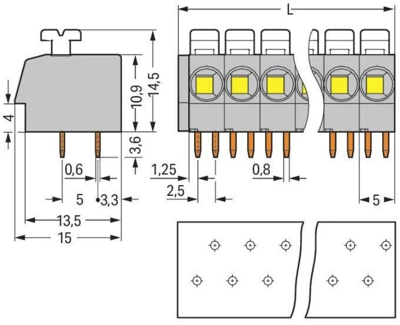

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Depth | 15 mm | |
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 20-12 | |
| Rated voltage | 320 V | |
| Height | 18.1 mm | |
| Assembly | THT | |
| Width | 21.5 mm | |
| Pin number | 4 pole | |
| Colour | black | |
| Cable cross-section | 0.25-2.5 mm² | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
