745-873/006-000/999-950 | WAGO

PCB terminal, 1 pole, pitch 15 mm, AWG 24-6, 71 A, cage clamp, light gray, 745-873/006-000/999-950

Order No.: 44P5144
EAN: 4055143588867
MPN:
745-873/006-000/999-950
Series: 745
745-873/006-000/999-950 WAGO PCB Terminal Blocks Image 1
745-873/006-000/999-950 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.2253 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2253 €

PCB terminal, 745-873/006-000/999-950, WAGO

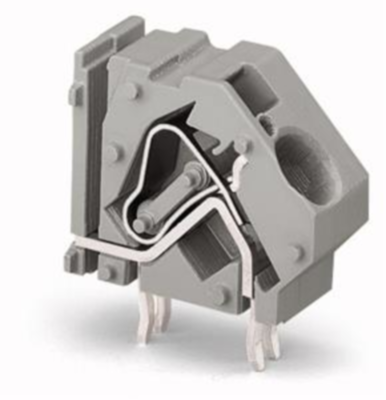

Stackable PCB terminal block, 16 mm², pin spacing: 15 mm, 1-pole, cage clamp, 16.00 mm², light gray.

Features

  • Modular terminal blocks with screwdriver-actuated cage clamp for custom terminal strip assemblies
  • Common and distribute potentials via comb-style jumper bars
  • Four solder pins for high mechanical stability
  • Marker slot for Mini-WSB markers
  • Integrated testing tap

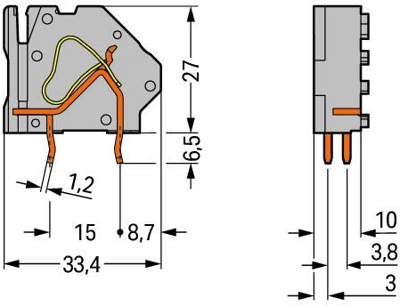

Technical specifications
Filter Property Value
Width 16.5 mm
Grid 15 mm
AWG cross-section AWG 24-6
Rated current 71 A
Rated voltage 440 V
Cable cross-section 0.2-16 mm²
Colour light gray
Pin number 1 pole
Assembly THT
Height 33.5 mm
Depth 33.4 mm
Connection cage clamp
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
