745-854/006-000 | WAGO

PCB terminal, 1 pole, pitch 10 mm, AWG 24-6, 76 A, cage clamp, blue, 745-854/006-000

Order No.: 43P2080
EAN: 4044918303156
MPN:
745-854/006-000
Series: 745

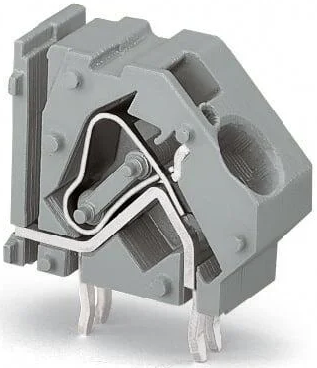

745-854/006-000 WAGO PCB Terminal Blocks Image 1

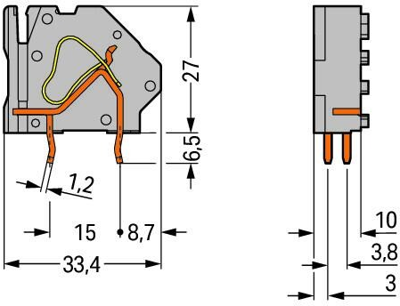

745-854/006-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8326 €

PCB terminal, 745-854/006-000, WAGO

Stackable PCB terminal block, 16 mm², pin spacing: 10 mm, 1-pole, cage clamp, 16.00 mm², blue.

Features

  • Modular PCB terminal blocks with screwdriver-actuated cage clamp for custom PCB terminal strip assemblies
  • Common and distribute potentials via comb-style jumper bars
  • Four solder pins for high mechanical stability
  • Marker slot for Mini-WSB markers
  • Integrated testing tap
Technical specifications
Filter Property Value
Pin number 1 pole
Grid 10 mm
Cable cross-section 0.2-16 mm²
AWG cross-section AWG 24-6
Contact distance RM 10/12.5
Rated current 76 A
Rated voltage 320 V
Width 11.5 mm
Height 33.5 mm
Depth 33.4 mm
Connection cage clamp
Assembly THT
Colour blue
Logistics
Property Value
Country of origin PL
Customs tariff number 85364900
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
