745-840 | WAGO
PCB terminal, 1 pole, pitch 10 mm, AWG 24-10, 41 A, cage clamp, red, 745-840
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
10 pcs.
1.1067 €
50 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

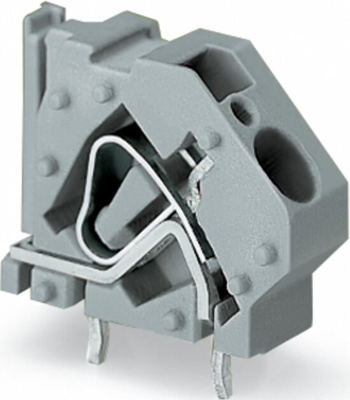

PCB terminal block, 745-840, WAGO
Stackable PCB terminal block, 6 mm², Pin spacing 10 mm, 1-pole, CAGE CLAMP, commoning option, 6.00 mm², red.
Features
- Modular terminal blocks with screwdriver-actuated CAGE CLAMP for custom terminal strip assemblies
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap
- Marker slot for Mini-WSB markers

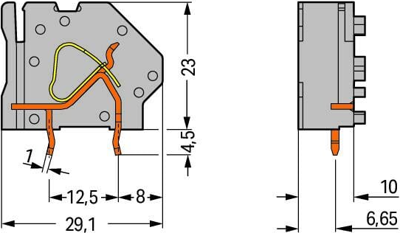

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cage clamp | |
| Width | 11.5 mm | |
| Colour | red | |
| Pin number | 1 pole | |
| AWG cross-section | AWG 24-10 | |
| Rated voltage | 1 kV | |
| Assembly | THT | |
| Height | 27.5 mm | |
| Rated current | 41 A | |
| Cable cross-section | 0.2-6.0 mm² | |
| Grid | 10 mm | |
| Depth | 29.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
