745-837 | WAGO

PCB terminal, 1 pole, pitch 7.5 mm, AWG 24-10, 41 A, cage clamp, yellow, 745-837

Order No.: 44P5132
EAN: 4044918302661
MPN:
745-837
Series: 745

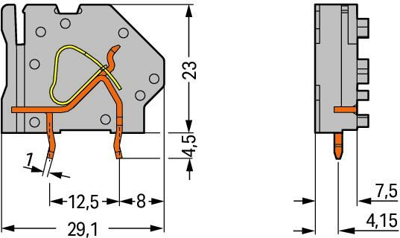

745-837 WAGO PCB Terminal Blocks Image 1

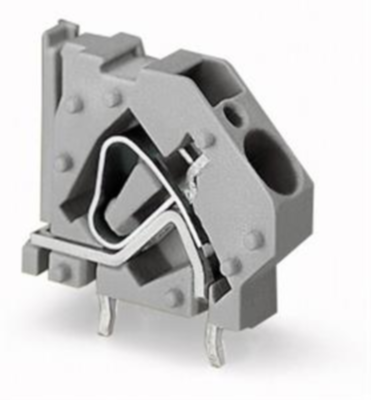

745-837 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.2614 €

Stackable PCB terminal block, 745-837, Wago

Modular single terminal block with jumper shaft 2 solder pins/pole 1-pole Spacing 7.5 mm / 0.295 in green-yellow

Technical specifications
Filter Property Value
Pin number 1 pole
Grid 7.5 mm
Cable cross-section 0.2-6.0 mm²
AWG cross-section AWG 24-10
Contact distance RM 7.5/12.5
Rated current 41 A
Rated voltage 630 V
Width 9 mm
Height 27.5 mm
Depth 29.1 mm
Connection cage clamp
Assembly THT
Colour yellow
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
