745-828 | WAGO
PCB terminal, 1 pole, pitch 10 mm, AWG 28-12, 32 A, cage clamp, light green, 745-828
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 4 Weeks
PCB terminal, 745-828, WAGO
Stackable PCB terminal block, 4 mm², pin spacing: 10 mm, 1-pole, CAGE CLAMP, 4.00 mm², light green.
Features
- Modular terminal blocks with screwdriver-actuated CAGE CLAMP for custom terminal strip assemblies
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap

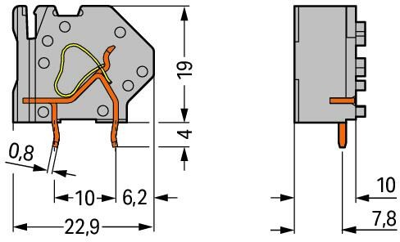

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 22.9 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 32 A | |
| Height | 23 mm | |
| Colour | light green | |
| Assembly | THT | |
| Width | 11.5 mm | |
| Grid | 10 mm | |
| Rated voltage | 1 kV | |
| Connection | cage clamp | |
| Pin number | 1 pole | |
| Cable cross-section | 0.08-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
