745-824 | WAGO

PCB terminal, 1 pole, pitch 10 mm, AWG 28-12, 32 A, cage clamp, blue, 745-824

Order No.: 44P5126
EAN: 4044918300414
MPN:
745-824
Series: 745

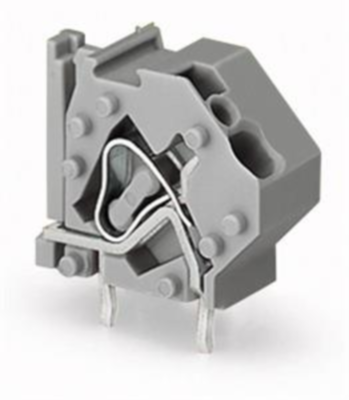

745-824 WAGO PCB Terminal Blocks Image 1

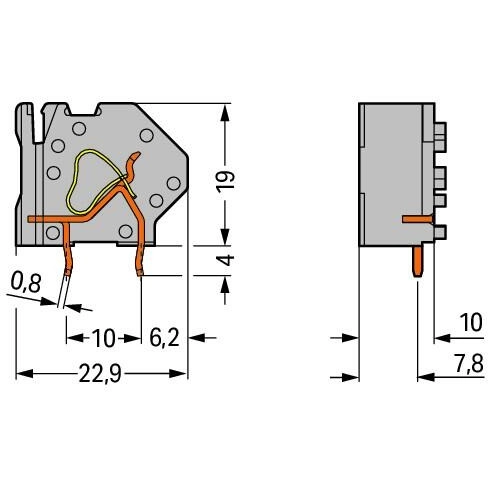

745-824 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0115 €

PCB terminal, 745-824, WAGO

Stackable PCB terminal block, 4 mm², pin spacing: 10 mm, 1-pole, suitable for Ex-i applications, CAGE CLAMP, 4.00 mm², blue.

Features

  • Modular terminal blocks with screwdriver-actuated CAGE CLAMP for custom terminal strip assemblies
  • Common and distribute potentials via comb-style jumper bars
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Rated current 32 A
Rated voltage 1 kV
Grid 10 mm
Depth 22.9 mm
AWG cross-section AWG 28-12
Cable cross-section 0.08-4.0 mm²
Pin number 1 pole
Height 23 mm
Assembly THT
Connection cage clamp
Colour blue
Width 11.5 mm
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
