745-811 | WAGO

PCB terminal, 1 pole, pitch 7.5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-811

Order No.: 44P5118
EAN: 4044918300278
MPN:
745-811
Series: 745

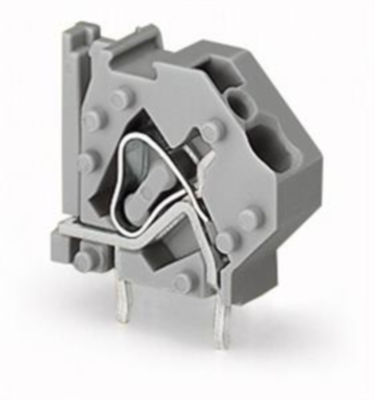

745-811 WAGO PCB Terminal Blocks Image 1

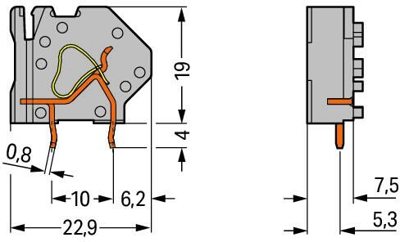

745-811 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.9282 €

Stackable PCB terminal block, 745-811, Wago

Modular single terminal block with jumper slot 2 solder pins/pole 1-pole Spacing 7.5 mm / 0.295 in gray

Technical specifications
Filter Property Value
Pin number 1 pole
Grid 7.5 mm
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28-12
Contact distance RM 7.5/10
Rated current 32 A
Rated voltage 630 V
Width 9 mm
Height 23 mm
Depth 22.9 mm
Connection cage clamp
Assembly THT
Colour gray
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
