745-652/006-000 | WAGO

PCB terminal, 2 pole, pitch 20 mm, AWG 24-6, 76 A, cage clamp, gray, 745-652/006-000

Order No.: 44P5101
EAN: 4044918303040
MPN:
745-652/006-000
Series: 745

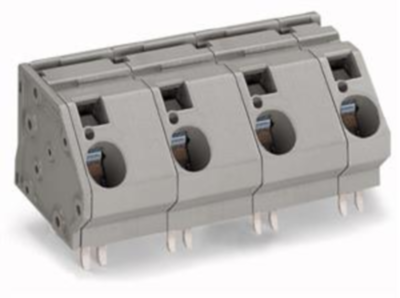

745-652/006-000 WAGO PCB Terminal Blocks Image 1

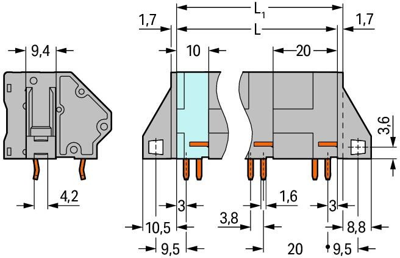

745-652/006-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.2364 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.2364 €

PCB terminal, 745-652/006-000, WAGO

PCB terminal block, 16 mm², pin spacing: 20 mm, 2-pole, CAGE CLAMP, 16.00 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Common and distribute potentials via comb-style jumper bars
  • Four solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Width 31.7 mm
Grid 20 mm
AWG cross-section AWG 24-6
Rated current 76 A
Rated voltage 1 kV
Cable cross-section 0.2-16 mm²
Colour gray
Pin number 2 pole
Assembly THT
Height 33.5 mm
Depth 33.4 mm
Connection cage clamp
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
