745-503/006-000 | WAGO
PCB terminal, 3 pole, pitch 10 mm, AWG 24-6, 76 A, cage clamp, gray, 745-503/006-000
Unit Price (€ / pc.)
5.5216 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal, 745-503/006-000, WAGO
PCB terminal block, 16 mm², pin spacing: 10 mm, 3-pole, CAGE CLAMP, 16.00 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Common and distribute potentials via comb-style jumper bars
- Four solder pins for high mechanical stability
- Integrated testing tap

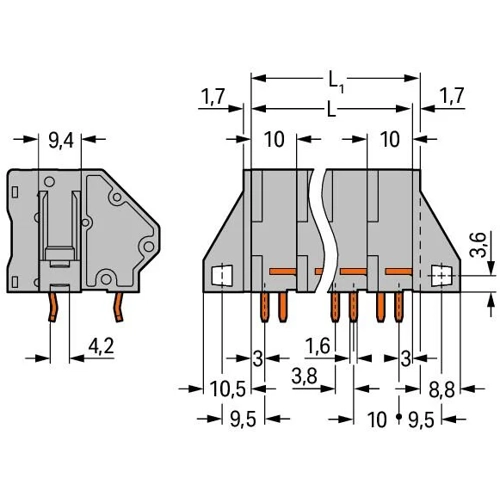

Technical specifications
| Colour | gray | |
| Depth | 33.4 mm | |
| AWG cross-section | AWG 24-6 | |
| Rated current | 76 A | |
| Grid | 10 mm | |
| Width | 31.7 mm | |
| Height | 33.5 mm | |
| Cable cross-section | 0.2-16 mm² | |
| Pin number | 3 pole | |
| Connection | cage clamp | |
| Rated voltage | 250 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
