745-3808 | WAGO

PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 32 A, cage clamp, light green, 745-3808

Order No.: 44P5062
EAN: 4045454001247
MPN:
745-3808
Series: 745

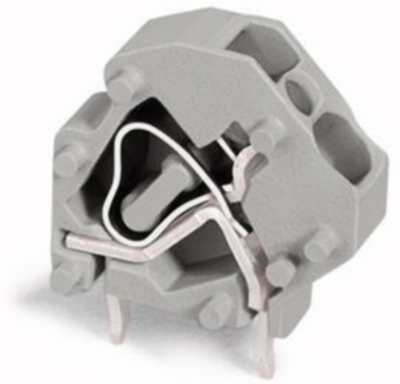

745-3808 WAGO PCB Terminal Blocks Image 1
745-3808 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.8687 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.8687 €

PCB terminal, 745-3808, WAGO

Stackable PCB terminal block, 4 mm², pin spacing: 5 mm, 1-pole, CAGE CLAMP, 4.00 mm², light green.

Features

  • Modular PCB terminal blocks with screwdriver-actuated CAGE CLAMP for custom PCB terminal strip assemblies
  • Spacers for higher voltage applications
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Pin number 1 pole
Grid 5 mm
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28-12
Contact distance RM 5/10
Rated current 32 A
Rated voltage 320 V

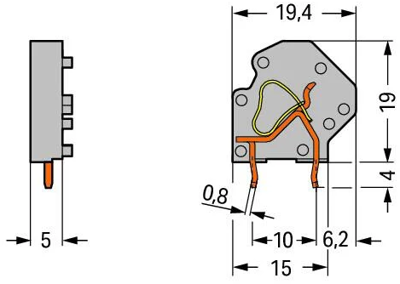

Width 6.5 mm
Height 23 mm
Depth 19.4 mm
Connection cage clamp
Assembly THT
Colour light green
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
