745-3259 | WAGO

PCB terminal, 9 pole, pitch 12.5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3259

Order No.: 44P9536
EAN: 4045454001148
MPN:
745-3259
Series: 745

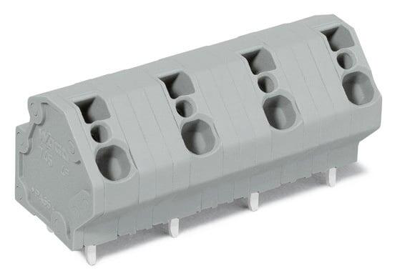

745-3259 WAGO PCB Terminal Blocks Image 1

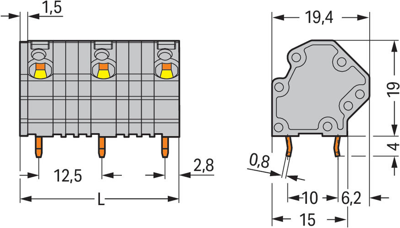

745-3259 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
7.0091 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.0091 €

PCB terminal block, 745-3259, WAGO

PCB terminal block, 4 mm², Pin spacing 12.5 mm, 9-pole, CAGE CLAMP, 4 mm², gray.

Features

  • Terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Mixed-color PCB terminal strips from factory
  • Space-saving configuration of terminal strips when placed behind each other
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Colour gray
Depth 19.4 mm
AWG cross-section AWG 28-12
Rated current 32 A
Grid 12.5 mm
Width 106.5 mm
Height 23 mm
Cable cross-section 0.08-4.0 mm²
Pin number 9 pole
Connection cage clamp
Rated voltage 1 kV
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
