745-3253 | WAGO

PCB terminal, 3 pole, pitch 12.5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3253

Order No.: 44P5031
EAN: 4045454001087
MPN:
745-3253
Series: 745

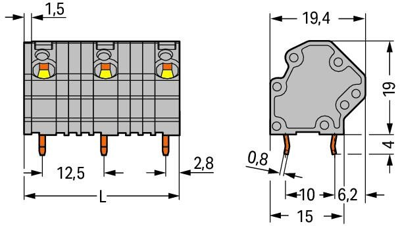

745-3253 WAGO PCB Terminal Blocks Image 1

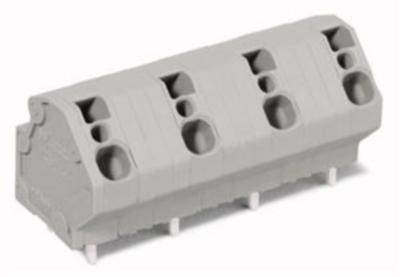

745-3253 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.6299 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.6299 €

PCB terminal, 745-3253, WAGO

PCB terminal block, 4 mm², pin spacing: 12.5 mm, 3-pole, CAGE CLAMP, 4.00 mm², gray.

Features

  • Terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Pin number 3 pole
Grid 12.5 mm
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28-12
Contact distance RM 12.5/10
Rated current 32 A
Rated voltage 1 kV
Width 31.5 mm
Height 23 mm
Depth 22.9 mm
Connection cage clamp
Assembly THT
Colour gray
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
