745-3211 | WAGO

PCB terminal, 11 pole, pitch 10 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3211

Order No.: 44P5028
EAN: 4055143494953
MPN:
745-3211
Series: 745

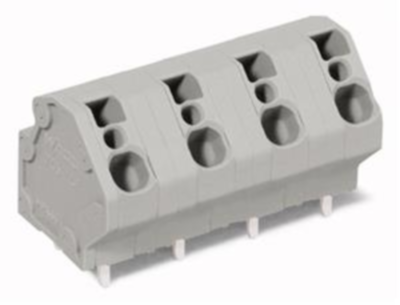

745-3211 WAGO PCB Terminal Blocks Image 1
745-3211 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
9.52 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.52 €

PCB terminal, 745-3211, WAGO

PCB terminal block, 4 mm², pin spacing: 10 mm, 11-pole, cage clamp, 4.00 mm², gray.

Features

  • Terminal strips with screwdriver-actuated cage clamp connection
  • Space-saving configuration of terminal strips when placed behind each other
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Colour gray
Depth 19.4 mm
AWG cross-section AWG 28-12
Rated current 32 A
Grid 10 mm
Width 106.5 mm
Height 23 mm
Cable cross-section 0.08-4.0 mm²
Pin number 11 pole
Connection cage clamp
Rated voltage 1 kV
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
