745-3111 | WAGO

PCB terminal, 11 pole, pitch 5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3111

Order No.: 44P5004
EAN: 4055143494939
MPN:
745-3111
Series: 745

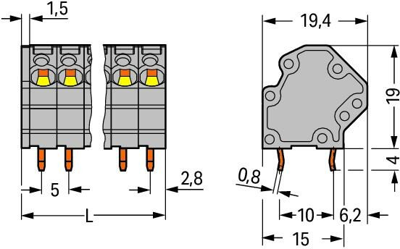

745-3111 WAGO PCB Terminal Blocks Image 1

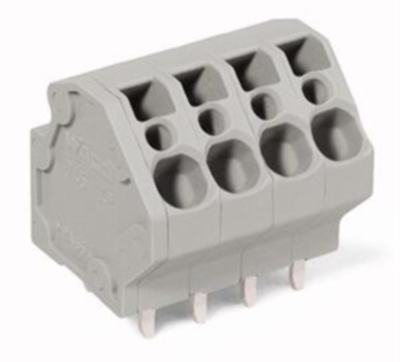

745-3111 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.7592 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.7592 €

PCB terminal, 745-3111, WAGO

PCB terminal block, 4 mm², pin spacing: 5 mm, 11-pole, cage clamp, 4.00 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated cage clamp connection
  • Space-saving configuration of terminal strips when placed behind each other
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Colour gray
Depth 19.4 mm
AWG cross-section AWG 28-12
Rated current 32 A
Grid 5 mm
Width 56.5 mm
Height 23 mm
Contact distance RM 5/10
Cable cross-section 0.08-4.0 mm²
Pin number 11 pole
Connection cage clamp
Rated voltage 320 V
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
