745-3107 | WAGO

PCB terminal, 7 pole, pitch 5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3107

Order No.: 44P9534
EAN: 4045454153724
MPN:
745-3107
Series: 745

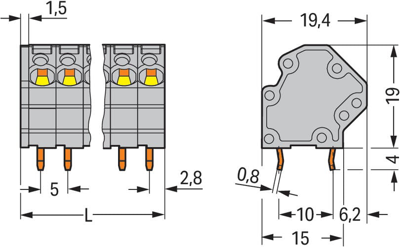

745-3107 WAGO PCB Terminal Blocks Image 1

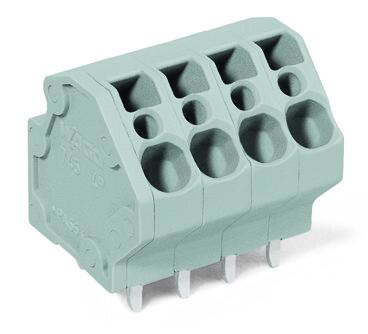

745-3107 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.641 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.641 €

PCB terminal block, 745-3107, WAGO

PCB terminal block, 4 mm², Pin spacing 5 mm, 7-pole, CAGE CLAMP, 4 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Mixed-color PCB terminal strips from factory
  • Space-saving configuration of terminal strips when placed behind each other
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Width 36.5 mm
Grid 5 mm
AWG cross-section AWG 28-12
Rated current 32 A
Rated voltage 320 V
Cable cross-section 0.08-4.0 mm²
Colour gray
Pin number 7 pole
Assembly THT
Height 23 mm
Depth 19.4 mm
Connection cage clamp
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
