745-204/000-023 | WAGO
PCB terminal, 4 pole, pitch 10 mm, AWG 28-12, 32 A, cage clamp, green, 745-204/000-023
Unit Price (€ / pc.)
3.213 € *
Standard delivery time from the manufacturer is: 4 Weeks
PCB terminal, 745-204/000-023, WAGO
PCB terminal block, 4 mm², pin spacing: 10 mm, 4-pole, CAGE CLAMP, 4.00 mm², green.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap

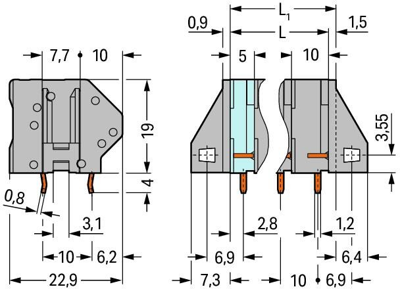

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-12 | |
| Colour | green | |
| Connection | cage clamp | |
| Rated voltage | 1 kV | |
| Cable cross-section | 0.08-4.0 mm² | |
| Width | 36.5 mm | |
| Height | 23 mm | |
| Assembly | THT | |
| Depth | 22.9 mm | |
| Pin number | 4 pole | |
| Grid | 10 mm | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
