745-152 | WAGO

PCB terminal, 2 pole, pitch 7.5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-152

Order No.: 44P4939
EAN: 4044918671187
MPN:
745-152
Series: 745

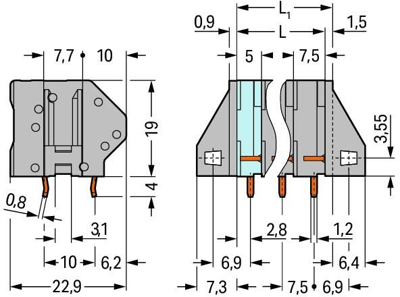

745-152 WAGO PCB Terminal Blocks Image 1

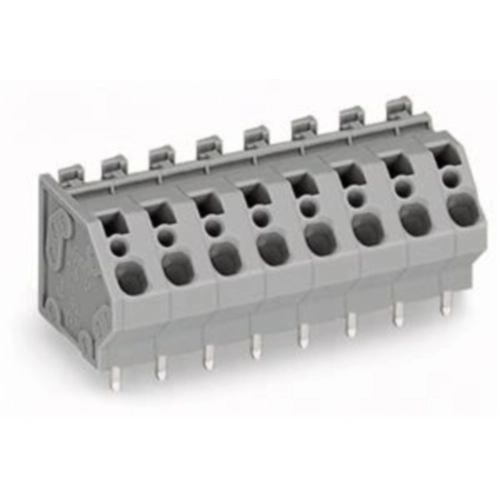

745-152 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7612 €

PCB terminal, 745-152, WAGO

PCB terminal block, 4 mm², pin spacing: 7.5 mm, 2-pole, CAGE CLAMP, 4.00 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Common and distribute potentials via comb-style jumper bars
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Filter Property Value
Pin number 2 pole
Grid 7.5 mm
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28-12
Contact distance RM 7.5/10
Rated current 32 A
Rated voltage 630 V
Width 14 mm
Height 23 mm
Depth 22.9 mm
Connection cage clamp
Assembly THT
Colour gray
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
