745-1412 | WAGO
PCB terminal, 12 pole, pitch 12.5 mm, AWG 24-10, 41 A, cage clamp, gray, 745-1412
Unit Price (€ / pc.)
17.8738 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

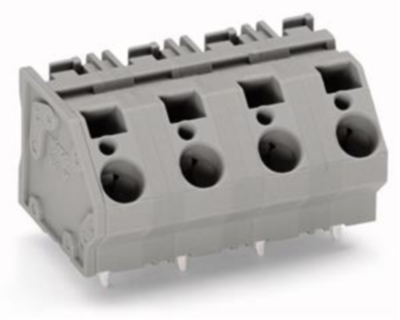

PCB terminal, 745-1412, WAGO
PCB terminal block, 6 mm², pin spacing: 12.5 mm, 12-pole, CAGE CLAMP, 6.00 mm², gray.
Features
- Terminal strips with screwdriver-actuated CAGE CLAMP connection
- Double solder pins for high mechanical stability
- Integrated testing tap

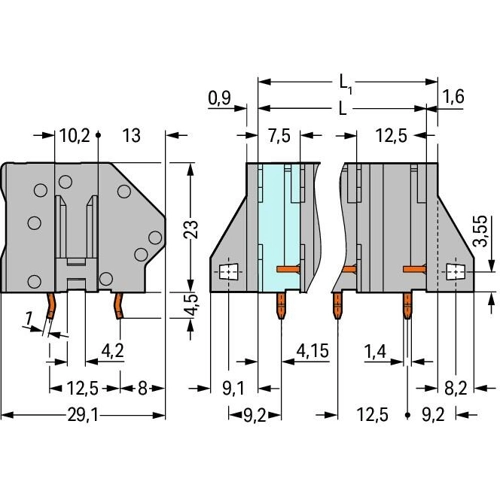

Technical specifications
| Colour | gray | |
| Depth | 29.1 mm | |
| AWG cross-section | AWG 24-10 | |
| Rated current | 41 A | |
| Grid | 12.5 mm | |
| Width | 146.6 mm | |
| Height | 27.5 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Pin number | 12 pole | |
| Connection | cage clamp | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
