745-1404 | WAGO

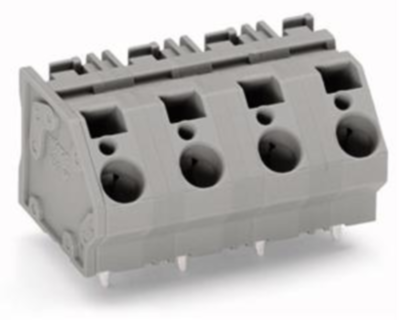

PCB terminal, 4 pole, pitch 12.5 mm, AWG 24-10, 41 A, cage clamp, gray, 745-1404
Unit Price (€ / pc.)
5.0813 € *
Standard delivery time from the manufacturer is: 4 Weeks
PCB terminal, 745-1404, WAGO
PCB terminal block, 6 mm², pin spacing: 12.5 mm, 4-pole, CAGE CLAMP, 6.00 mm², gray.
Features
- Terminal strips with screwdriver-actuated CAGE CLAMP connection
- Double solder pins for high mechanical stability
- Integrated testing tap

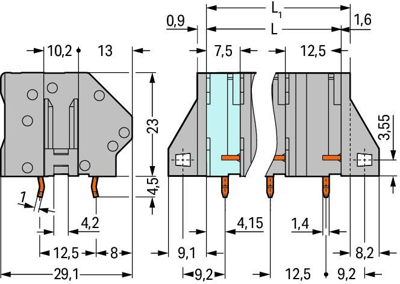

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 46.6 mm | |
| Grid | 12.5 mm | |
| AWG cross-section | AWG 24-10 | |
| Rated current | 41 A | |
| Rated voltage | 1 kV | |
| Cable cross-section | 0.2-6.0 mm² | |
| Colour | gray | |
| Pin number | 4 pole | |
| Assembly | THT | |
| Height | 27.5 mm | |
| Depth | 29.1 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
