745-1354/000-009/999-950 | WAGO
PCB terminal, 4 pole, pitch 10 mm, AWG 28-12, 31 A, cage clamp, gray, 745-1354/000-009/999-950
Unit Price (€ / pc.)
7.3066 € *
Standard delivery time from the manufacturer is: 4 Weeks

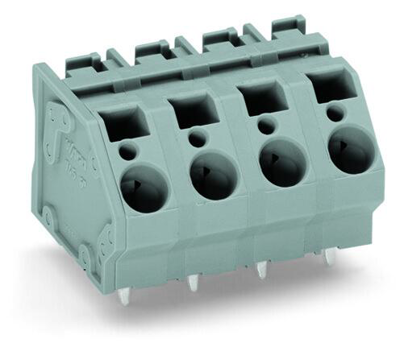

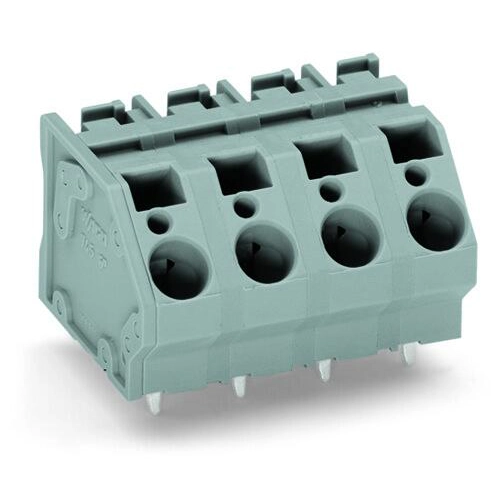

PCB terminal block, 745-1354/000-009/999-950, WAGO
PCB terminal block, 6 mm², Pin spacing 10 mm, 4-pole, suitable for Ex-e applications, commoning option, 6 mm², light gray.
Features
- Terminal strips with screwdriver-actuated CAGE CLAMP connection
- Unrestricted UL approval up to 600 V with 12.5 mm pin spacing
- Double solder pins for high mechanical stability
- Integrated testing tap
- Marker slot for Mini-WSB markers

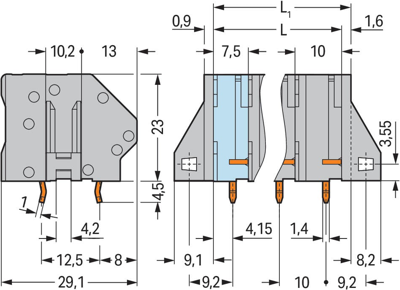

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Pin number | 4 pole | |
| Height | 27.5 mm | |
| Colour | gray | |
| Rated current | 31 A | |
| Cable cross-section | 0.08-4.0 mm² | |
| Connection | cage clamp | |
| Assembly | THT | |
| AWG cross-section | AWG 28-12 | |
| Depth | 29.1 mm | |
| Rated voltage | 440 V | |
| Width | 39.01 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
