744-303/364-000 | WAGO

PCB terminal, 3 pole, pitch 3.5 mm, AWG 20-16, 3 A, push-in, white, 744-303/364-000

Order No.: 44P9524
EAN: 4055143812696
MPN:
744-303/364-000
Series: 744

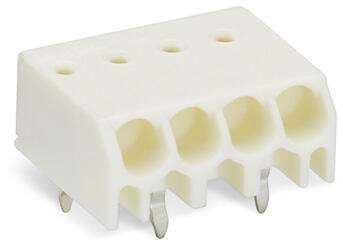

744-303/364-000 WAGO PCB Terminal Blocks Image 1

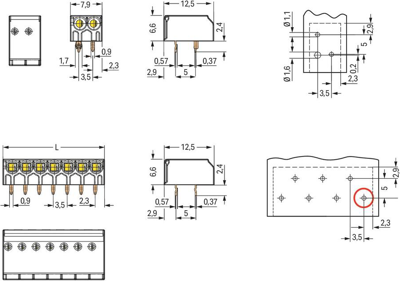

744-303/364-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7497 €

PCB terminal block, 744-303/364-000, WAGO

PCB terminal block, 1.5 mm², Pin spacing 3.5 mm, 3-pole, PUSH WIRE, 1.5 mm², white.

Features

  • PCB terminal blocks with PUSH WIRE connection
  • Push-in termination of solid conductors – low insertion forces
  • Conductor removal via disconnection tool or by twist & pull
Technical specifications
Colour white
Depth 12.5 mm
AWG cross-section AWG 20-16
Rated current 3 A
Grid 3.5 mm
Width 11.4 mm
Height 9 mm
Cable cross-section 0.5-1.5 mm²
Pin number 3 pole
Connection push-in
Rated voltage 320 V
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
