741-905 | WAGO
PCB terminal, 1 pole, pitch 6.5 mm, AWG 28-12, 16 A, cage clamp, gray, 741-905
Unit Price (€ / pc.)
0.8687 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.8330 €
50 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

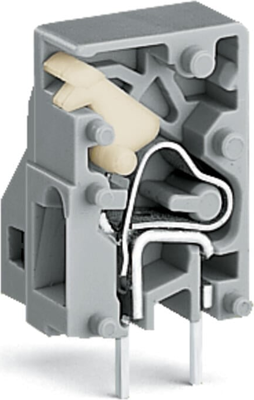

PCB terminal block, 741-905, WAGO
Stackable PCB terminal block, push-button, 2.5 mm², Pin spacing 6.5 mm, 1-pole, CAGE CLAMP, clamping collar, 2.50 mm², gray.
Features
- Feedthrough PCB terminal strips with push-button actuated CAGE CLAMP
- Simple, push-button wiring
- Test slot integrated into upper-portion of conductor entry for test pins
- Mounting flanges for additional mechanical stability

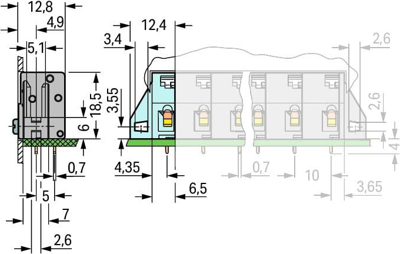

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5 mm | |
| Grid | 6.5 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 16 A | |
| Rated voltage | 250 V | |
| Cable cross-section | 0.08-2.5 mm² | |
| Colour | gray | |
| Pin number | 1 pole | |
| Assembly | THT | |
| Height | 22.5 mm | |
| Depth | 12.8 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
