PCB terminal, 7 pole, pitch 10.16 mm, AWG 28-12, 16 A, cage clamp, orange, 741-607
Unit Price (€ / pc.)
5.6049 € *
Standard delivery time from the manufacturer is: 4 Weeks

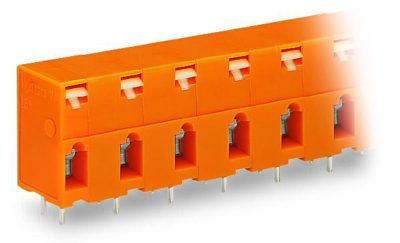

PCB terminal block, 741-607, WAGO
PCB terminal block, push-button, 2.5 mm², Pin spacing 10.16 mm, 7-pole, CAGE CLAMP, 2.5 mm², orange.
Features
- Feedthrough PCB terminal strips with push-button actuated CAGE CLAMP
- Simple, push-button wiring
- Test slot integrated into upper-portion of conductor entry for test pins
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 67.46 mm | |
| Grid | 10.16 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 16 A | |
| Rated voltage | 1 kV | |
| Cable cross-section | 0.08-2.5 mm² | |
| Colour | orange | |
| Pin number | 7 pole | |
| Assembly | THT | |
| Height | 22.5 mm | |
| Depth | 12.8 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
