741-329 | WAGO

PCB terminal, 9 pole, pitch 7.5 mm, AWG 28-12, 16 A, cage clamp, gray, 741-329

Order No.: 44P9517
EAN: 4017332348645
MPN:
741-329
Series: 741

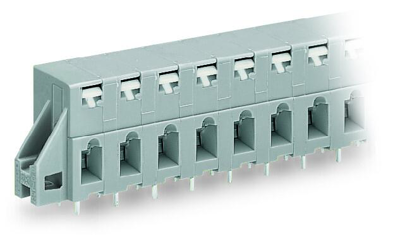

741-329 WAGO PCB Terminal Blocks Image 1

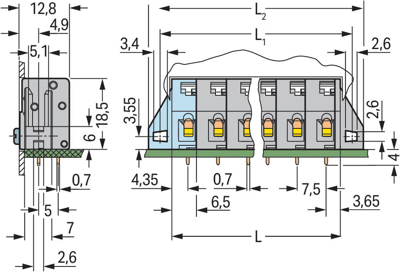

741-329 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.9615 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.9615 €

PCB terminal block, 741-329, WAGO

PCB terminal block, push-button, 2.5 mm², Pin spacing 7.5 mm, 9-pole, clamping collar, 2.5 mm², gray.

Features

  • Feedthrough PCB terminal strips with push-button actuated CAGE CLAMP
  • Simple, push-button wiring
  • Test slot integrated into upper-portion of conductor entry for test pins
  • Mounting flanges for additional mechanical stability
Technical specifications
Colour gray
Depth 12.8 mm
AWG cross-section AWG 28-12
Rated current 16 A
Grid 7.5 mm
Width 74.4 mm
Height 22.5 mm
Cable cross-section 0.08-2.5 mm²
Pin number 9 pole
Connection cage clamp
Rated voltage 630 V
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
