741-135 | WAGO

PCB terminal, 5 pole, pitch 5 mm, AWG 28-12, 16 A, cage clamp, gray, 741-135

Order No.: 44P4746
EAN: 4044918679732
MPN:
741-135
Series: 741

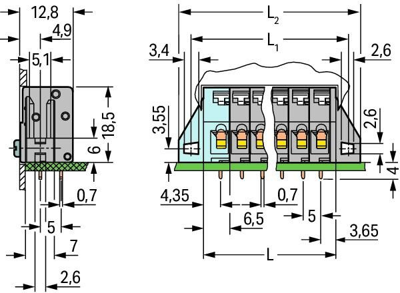

741-135 WAGO PCB Terminal Blocks Image 1

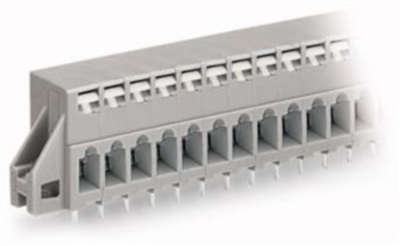

741-135 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.6886 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.6886 €

PCB terminal, 741-135, WAGO

PCB terminal block, push-button, 2.5 mm², pin spacing: 5 mm, 5-pole, CAGE CLAMP, clamping collar, 2.50 mm², gray.

Features

  • Feedthrough PCB terminal strips with push-button actuated CAGE CLAMP
  • Simple, push-button wiring
  • Test slot integrated into upper-portion of conductor entry for test pins
  • Mounting flanges for additional mechanical stability
Technical specifications
Colour gray
Depth 12.8 mm
AWG cross-section AWG 28-12
Rated current 16 A
Grid 5 mm
Width 34.4 mm
Height 22.5 mm
Cable cross-section 0.08-2.5 mm²
Pin number 5 pole
Connection cage clamp
Rated voltage 320 V
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
