PCB terminal, 6 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, gray, 739-3206
Unit Price (€ / pc.)
4.7719 € *
Standard delivery time from the manufacturer is: 4 Weeks

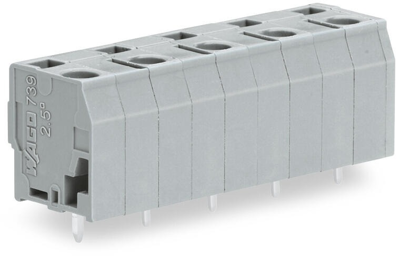

PCB terminal, 739-3206, WAGO
PCB terminal block, 2.5 mm², pin spacing: 10 mm, 6-pole, CAGE CLAMP, 2.50 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Vertical conductor entry and operating direction for space-saving positioning/grouping
Technical specifications
| Colour | gray | |
| Depth | 14.3 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 24 A | |
| Grid | 10 mm | |
| Width | 56.5 mm | |
| Height | 19 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Pin number | 6 pole | |
| Connection | cage clamp | |
| Rated voltage | 630 V |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
