739-105/000-023 | WAGO

PCB terminal, 5 pole, pitch 5 mm, AWG 28-14, 24 A, cage clamp, green, 739-105/000-023

Order No.: 44P9508
EAN: 4045454903138
MPN:
739-105/000-023
Series: 739

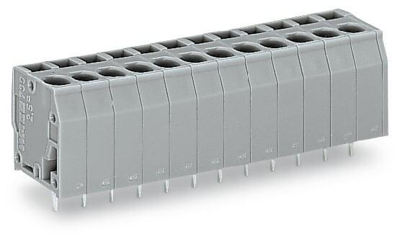

739-105/000-023 WAGO PCB Terminal Blocks Image 1
739-105/000-023 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.4633 €

PCB terminal block, 739-105/000-023, WAGO

PCB terminal block, 2.5 mm², Pin spacing 5 mm, 5-pole, CAGE CLAMP, 2.5 mm², green

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Vertical conductor entry and operating direction for space-saving positioning/grouping

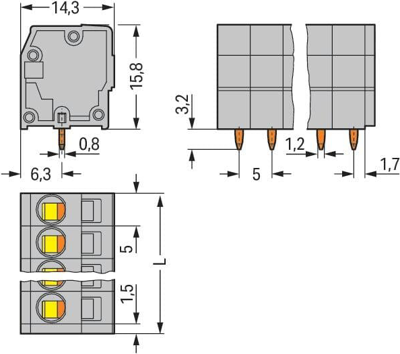

Technical specifications
Filter Property Value
Width 26.5 mm
Grid 5 mm
AWG cross-section AWG 28-14
Rated current 24 A
Rated voltage 320 V
Cable cross-section 0.08-2.5 mm²
Colour green
Pin number 5 pole
Assembly THT
Height 19 mm
Depth 14.3 mm
Connection cage clamp
Logistics
Property Value
Country of origin CH
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
